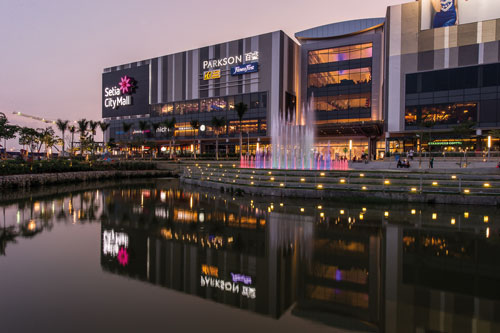

Setia Mall will be the first green rated shopping mall in Malaysia. It is targeting Green Mark Platinum certification level and Leed Retail Gold certification level. Energy efficient features such as high efficient chiller plant, energy efficient light fixture, daylighting and insulation will be incorporated into the design of the building.

In Setia Mall, water efficient fittings will be installed and a reduction in portable water usage of 50% is expected. Rainwater will be harvested to cater for toilet flushing demand and irrigation demand. Regional material and recycled content materials will be used in the construction of this building to reduce environmental impact associated with extraction and processing of virgin resources. Apart from these, 2 % of the building energy consumption will be catered by solar renewable energy.

Please click here to download a leaflet describing the green features of Setia City Mall in details.

Input by IEN Consultants

  • Sustainablility Consultants.

  • Detailed Energy and optimisation simulations.

  • Sustainable “Shopping” List of more than 50 items to let the client choose the items with lowest cost and the highest impact on energy efficiency.

  • Detailed daylight simulations and optimisation (Radiance).

  • Chiller System optimization.

  • AHU optimization.

  • Building was simulated to be possible to achieve an energy index below 130 kWh/m2/year, where else, typical shopping mall energy index is 400 ~ 500 kWh/m2/year.

  • Hourly simulation of rain data used for optimization of Rainwater Harvesting Tank and collection area.

  • Drive Through Recycling Center provided for shoppers to unload weekly recyclable garbage before restock at the shopping mall.

  • Renewable Energy from Speed Bump to generate electricity while slowing down vehicles around the shopping mall car park.

  • Renewable Energy from BIPV to power Electrical Vehicle Charging Station proposed to enable shoppers to recharge their vehicle using totally renewable energy.


GBI
Silver


Green Mark
Gold

Year of completion: 2012
Project scale: 100,000 m2
Energy benchmark: 303 kWh/m2/year
Client: Greenhill Resources Sdn Bhd
Developer: Lend Lease Projects
Architect: Archicentre
