The Steadhaus high end condominium at KLCC is designed to meet the highest green building standards with a target rating of Green Mark Platinum. The building envelope is highly efficient with double glazing that allows the residents to enjoy daylight and the view of the city skyline without compromise on comfort or energy consumption.

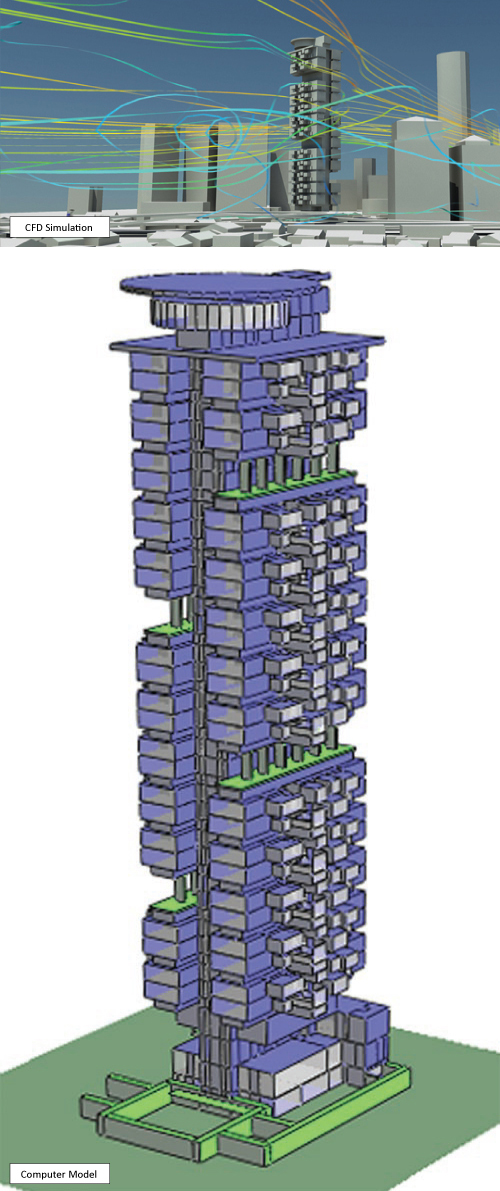

All energy systems for cooling and lighting are top of the range regarding energy efficiency, and advanced CFD simulations have been used to optimize the apartments for natural ventilation as well as airconditioning.

Input by IEN Consultants

• Energy simulation: Up to 40% energy saving compared with conventional building design.


• CFD simulation: Average wind speed of 0.6m/s is achievable in each typical unit.


• Natural daylighting: Living room, bedroom, dining room, kitchen and toilet will be daylit.


• Rainwater Harvesting: For irrigation and toilet flushing.


• Waste water recycling and reuse.


• Siphonic Rainwater Drainage System.


• Green Roof.


• Waste Heat Recovery: Hot water supply and heating of swimming pool.


• Renewable energy: PV Panel.


• Energy Efficient lighting in all common areas.


• Renewable energy: PV Panel.


• High performance double glazing, OTTV less than 10 W/m².


• VRV cooling system with waste heat recovery for hot water and pool heating.


• Rainwater collected from helipad for irrigation of the green roof.

Green Mark
Platinum

Project scale: 17,000 m²
Client: Steadmont Development Sdn Bhd
Architect: M Studio
